Guide: React and Vue

GraphQL Code Generator is a tool that generates code from your GraphQL schema and operations. It can generate TypeScript, Flow, Swift, Kotlin, and more.

GraphQL Code Generator provides a unified way to get TypeScript types from GraphQL operations for most modern GraphQL clients and frameworks.

This guide is built using the Star wars films demo API.

We will build a simple GraphQL front-end app using the following Query to fetch the list of Star Wars films:

query allFilmsWithVariablesQuery($first: Int!) {
  allFilms(first: $first) {
    edges {
      node {
        ...FilmItem
      }
    }
  }
}

and its FilmItem Fragment definition:

fragment FilmItem on Film {
  id
  title
  releaseDate
  producers
}

Installation

For most GraphQL clients and frameworks (React, Vue), install the following packages:

npm install graphql @graphql-typed-document-node/core
npm install --save-dev typescript @graphql-codegen/cli @parcel/watcher

Then provide the corresponding framework-specific configuration:

codegen.ts
import type { CodegenConfig } from '@graphql-codegen/cli'

const config: CodegenConfig = {
  schema: 'https://graphql.org/graphql/',
  documents: ['src/**/*.tsx'],
  ignoreNoDocuments: true, // for better experience with the watcher
  generates: {
    './src/gql/': {
      preset: 'client'
    }
  }
}

export default config
codegen.ts
import type { CodegenConfig } from '@graphql-codegen/cli'

const config: CodegenConfig = {
  schema: 'https://graphql.org/graphql/',
  documents: ['src/**/*.vue'],
  ignoreNoDocuments: true, // for better experience with the watcher
  generates: {
    './src/gql/': {
      preset: 'client',
      config: {
        useTypeImports: true
      }
    }
  }
}

export default config

Note: For React Query, please refer to our dedicated guide.


Writing GraphQL Queries

First, start GraphQL Code Generator in watch mode:

npm run graphql-codegen --watch

Using GraphQL Code Generator will type your GraphQL Query and Mutations as you write them ⚡️

Now, we can start implementing our first query with the graphql() function, generated in src/gql/:

src/App.tsx
import React from "react";
import { useQuery } from "@apollo/client";

import "./App.css";
import Film from "./Film";
import { graphql } from "../src/gql";

const allFilmsWithVariablesQueryDocument = graphql(/* GraphQL */ `
  query allFilmsWithVariablesQuery($first: Int!) {
    allFilms(first: $first) {
      edges {
        node {
          ...FilmItem
        }
      }
    }
  }
`);

function App() {
  // `data` is typed!
  const { data } = useQuery(allFilmsWithVariablesQueryDocument, {
    variables: { first: 10 },
  });
  return (
    <div className="App">
      {data && (
        <ul>
          {data.allFilms?.edges?.map(
            (e, i) => e?.node && <Film film={e?.node} key={`film-${i}`} />
          )}
        </ul>
      )}
    </div>
  );
}

export default App;
src/App.tsx
import React from "react";
import request from "graphql-request";
import { useQuery } from "@tanstack/react-query";

import "./App.css";
import Film from "./Film";
import { graphql } from "../src/gql";

const allFilmsWithVariablesQueryDocument = graphql(/* GraphQL */ `
  query allFilmsWithVariablesQuery($first: Int!) {
    allFilms(first: $first) {
      edges {
        node {
          ...FilmItem
        }
      }
    }
  }
`);

function App() {
  // `data` is typed!
  const { data } = useQuery(["films"], async () =>
    request(
      "https://graphql.org/graphql/",
      allFilmsWithVariablesQueryDocument,
      {
        first: 10, // variables are typed too!
      }
    )
  );

  return (
    <div className="App">
      {data && (
        <ul>
          {data.allFilms?.edges?.map(
            (e, i) => e?.node && <Film film={e?.node} key={`film-${i}`} />
          )}
        </ul>
      )}
    </div>
  );
}

export default App;
src/App.tsx
import React from "react";
import { useQuery } from "urql";

import "./App.css";
import Film from "./Film";
import { graphql } from "../src/gql";

const allFilmsWithVariablesQueryDocument = graphql(/* GraphQL */ `
  query allFilmsWithVariablesQuery($first: Int!) {
    allFilms(first: $first) {
      edges {
        node {
          ...FilmItem
        }
      }
    }
  }
`);

function App() {
  // `data` is typed!
  const [{ data }] = useQuery({
    query: allFilmsWithVariablesQueryDocument,
    variables: {
      // variables are typed too!
      first: 10,
    },
  });

  return (
    <div className="App">
      {data && (
        <ul>
          {data.allFilms?.edges?.map(
            (e, i) => e?.node && <Film film={e?.node} key={`film-${i}`} />
          )}
        </ul>
      )}
    </div>
  );
}

export default App;
<script setup lang="ts">
import { computed } from 'vue'
import { useQuery } from '@urql/vue'
import { graphql } from '../src/gql'
import FilmItem from './components/FilmItem.vue'

const { data } = useQuery({
  query: graphql(/* GraphQL */ `
    query allFilmsWithVariablesQuery($first: Int!) {
      allFilms(first: $first) {
        edges {
          node {
            ...FilmItem
          }
        }
      }
    }
  `),
  // variables are typed!
  variables: { first: 10 }
})
// `films` is typed!
const films = computed(() => data.value?.allFilms?.edges?.map(e => e?.node!))
</script>

<template>
  <ul>
    <li v-for="film of films"><FilmItem :film="film" /></li>
  </ul>
</template>

<script setup lang="ts">
import { computed } from 'vue'
import { useQuery } from '@vue/apollo-composable'
import { graphql } from '../src/gql'
import FilmItem from './components/FilmItem.vue'

const { result } = useQuery(
  graphql(/* GraphQL */ `
    query allFilmsWithVariablesQuery($first: Int!) {
      allFilms(first: $first) {
        edges {
          node {
            ...FilmItem
          }
        }
      }
    }
  `),
  // variables are typed!
  { first: 10 }
)
// `films` is typed!
const films = computed(() => result.value?.allFilms?.edges?.map(e => e?.node!))
</script>

<template>
  <ul>
    <li v-for="film of films"><FilmItem :film="film" /></li>
  </ul>
</template>

Simply use the provided graphql() function (from ../src/gql/) to define your GraphQL Query or Mutation, then, get instantly typed-variables and result just by passing your GraphQL document to your favorite client ✨

Let’s now take a look at how to define our <Film> component using the FilmItem fragment and its corresponding TypeScript type.

Writing GraphQL Fragments

As showcased in one of our recent blog posts, GraphQL Fragments help build better isolated and reusable UI components.

Let’s look at the implementation of our Film UI component in React or Vue:

src/Film.tsx
import { FragmentType, useFragment } from "./gql/fragment-masking";
import { graphql } from "../src/gql";

export const FilmFragment = graphql(/* GraphQL */ `
  fragment FilmItem on Film {
    id
    title
    releaseDate
    producers
  }
`);

const Film = (props: {
  /* `film` property has the correct type 🎉 */
  film: FragmentType<typeof FilmFragment>;
}) => {
  const film = useFragment(FilmFragment, props.film);
  return (
    <div>
      <h3>{film.title}</h3>
      <p>{film.releaseDate}</p>
    </div>
  );
};

export default Film;
<script setup lang="ts">
import { graphql } from '.../src/gql'
import { useFragment, type FragmentType } from '../gql/fragment-masking'

const FilmFragment = graphql(/* GraphQL */ `
  fragment FilmItem on Film {
    id
    title
    releaseDate
    producers
  }
`)
const props = defineProps<{
  film: FragmentType<typeof FilmFragment>
}>()
// `filmObj` is typed!
const filmObj = useFragment(FilmFragment, props.film)
</script>

<template>
  <div>
    <h3>{{ filmObj.title }}</h3>
    <p>{{ filmObj.releaseDate }}</p>
  </div>
</template>

You will notice that our <FilmItem> component leverages 2 imports from our generated code (from ../src/gql): the FragmentType<T> type helper and the useFragment() function.

  • we use FragmentType<typeof FilmFragment> to get the corresponding Fragment TypeScript type
  • later on, we use useFragment() to retrieve the film property

Leveraging FragmentType<typeof FilmFragment> and useFragment() helps keep your UI component isolated and avoids inheriting the parent GraphQL Query’s typings.


By using GraphQL Fragments, you are explicitly declaring your UI component’s data dependencies and safely accessing only the data it needs.


Finally, unlike most GraphQL Client setups, you don’t need to append the Fragment definition document to the related Query. You simply need to reference it in your GraphQL Query, as shown below:

const allFilmsWithVariablesQueryDocument = graphql(/* GraphQL */ `
  query allFilmsWithVariablesQuery($first: Int!) {
    allFilms(first: $first) {
      edges {
        node {
          ...FilmItem
        }
      }
    }
  }
`)

Congratulations, you now have the best GraphQL front-end experience with fully-typed Queries and Mutations!

From simple Queries to more advanced Fragments-based ones, GraphQL Code Generator has you covered with a simple TypeScript configuration file, and without impact on your application bundle size! 🚀

What’s next?

To get the best GraphQL development experience, we recommend installing the GraphQLSP package to get:

  • syntax highlighting
  • autocomplete suggestions
  • validation against schema
  • quick-info on hover

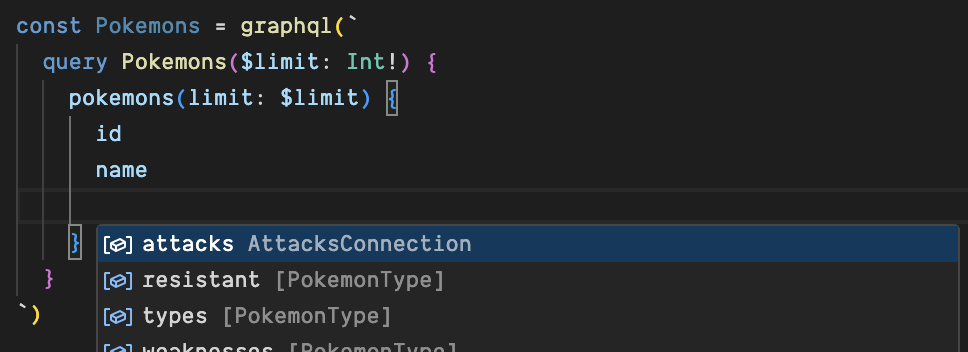

GraphQLSP

GraphQLSPs a TypeScript LSP plugin for GraphQL, to get it working, we need to add the following to your tsconfig.json after installing the package (npm i -D @0no-co/graphqlsp):

tsconfig.json
{
  "compilerOptions": {
    "plugins": [
      {
        "name": "@0no-co/graphqlsp",
        "schema": "./schema.graphql"
      }
    ]
  }
}

Last but not least you need to ensure that when you’re using VSCode that the workspace version of TS is used, the following config will make a prompt appear to switch it when visiting a TS file

.vscode/settings.json
{
  "typescript.tsdk": "node_modules/typescript/lib",
  "typescript.enablePromptUseWorkspaceTsdk": true
}

Also, make sure to follow GraphQL best practices by using graphql-eslint and the ESLint VSCode extension to visualize errors and warnings inlined in your code correctly.

Feel free to continue playing with this demo project, available in all flavors, in our repository examples folder.



Config API

The client preset allows the following config options:

  • scalars: Extends or overrides the built-in scalars and custom GraphQL scalars to a custom type.
  • defaultScalarType: Allows you to override the type that unknown scalars will have. Defaults to any.
  • strictScalars: If scalars are found in the schema that are not defined in scalars an error will be thrown during codegen.
  • namingConvention: Available case functions in change-case-all are camelCase, capitalCase, constantCase, dotCase, headerCase, noCase, paramCase, pascalCase, pathCase, sentenceCase, snakeCase, lowerCase, localeLowerCase, lowerCaseFirst, spongeCase, titleCase, upperCase, localeUpperCase and upperCaseFirst.
  • useTypeImports: Will use import type {} rather than import {} when importing only types. This gives compatibility with TypeScript’s "importsNotUsedAsValues": "error" option.
  • skipTypename: Does not add __typename to the generated types, unless it was specified in the selection set.
  • arrayInputCoercion: The GraphQL spec allows arrays and a single primitive value for list input. This allows to deactivate that behavior to only accept arrays instead of single values.
  • enumsAsTypes: Generates enum as TypeScript string union type instead of an enum. Useful if you wish to generate .d.ts declaration file instead of .ts, or if you want to avoid using TypeScript enums due to bundle size concerns.
  • enumsAsConst: Generates enum as TypeScript const assertions instead of enum. This can even be used to enable enum-like patterns in plain JavaScript code if you choose not to use TypeScript’s enum construct.
  • enumValues: Overrides the default value of enum values declared in your GraphQL schema. You can also map the entire enum to an external type by providing a string that of module#type.
  • nonOptionalTypename: Automatically adds __typename field to the generated types, even when they are not specified in the selection set, and makes it non-optional.
  • avoidOptionals: This will cause the generator to avoid using TypeScript optionals (?) on types.


Appendix I: React Query with a custom fetcher setup

The use of @tanstack/react-query along with graphql-request@^5 is highly recommended due to GraphQL Code Generator integration with graphql-request@^5.

Create a file with the following helper function within your project:

useGraphQL helper function
import request from 'graphql-request'
import { type TypedDocumentNode } from '@graphql-typed-document-node/core'
import { useQuery, type UseQueryResult } from '@tanstack/react-query'

export function useGraphQL<TResult, TVariables>(
  document: TypedDocumentNode<TResult, TVariables>,
  ...[variables]: TVariables extends Record<string, never> ? [] : [TVariables]
): UseQueryResult<TResult> {
  return useQuery([(document.definitions[0] as any).name.value, variables], async ({ queryKey }) =>
    request('https://graphql.org/graphql/', document, queryKey[1] ? queryKey[1] : undefined)
  )
}

Then write type-safe code like the following:

Application Code
import { graphql } from './generated/gql.js'
import { useGraphQL } from './use-graphql.js'

const allFilmsWithVariablesQueryDocument = graphql(/* GraphQL */ `
  query allFilmsWithVariablesQuery($first: Int!) {
    allFilms(first: $first) {
      edges {
        node {
          title
        }
      }
    }
  }
`)

function App() {
  // `data` is properly typed, inferred from `allFilmsWithVariablesQueryDocument` type
  const { data } = useGraphQL(
    allFilmsWithVariablesQueryDocument,
    // variables are also properly type-checked.
    { first: 10 }
  )

  // ... further component code
}

In case you do not want to use graphql-request with @tanstack/react-query, you can write and type your own custom fetcher function.

GraphQL Code Generator, via the client preset, generates GraphQL documents similar to the following:

const query: TypedDocumentNode<{ greetings: string }, never | Record<any, never>> = parse(
  /* GraphQL */ `
    query greetings {
      greetings
    }
  `
)

A TypedDocumentNode<R, V> type carry 2 Generic arguments: the type of the GraphQL result R and the type of the GraphQL operation variables V.

To implement your own React Query fetcher while preserving the GraphQL document type inference, it should implement a function signature that extract the result type and use it as a return type, as showcased below:

Custom fetcher function and useGraphQL hook implementation
import { print, type ExecutionResult } from 'graphql'
import { type TypedDocumentNode } from '@graphql-typed-document-node/core'
import { useQuery, type UseQueryResult } from '@tanstack/react-query'

/** Your custom fetcher function */
async function customFetcher<TResult, TVariables>(
  url: string,
  document: TypedDocumentNode<TResult, TVariables>,
  ...[variables]: TVariables extends Record<string, never> ? [] : [TVariables]
): Promise<TResult> {
  const response = await fetch(url, {
    method: 'POST',
    headers: {
      'content-type': 'application/json'
    },
    body: JSON.stringify({
      query: print(document),
      variables
    })
  })
  if (response.status !== 200) {
    throw new Error(`Failed to fetch: ${response.statusText}. Body: ${await response.text()}`)
  }

  return await response.json()
}

export function useGraphQL<TResult, TVariables>(
  document: TypedDocumentNode<TResult, TVariables>,
  ...[variables]: TVariables extends Record<string, never> ? [] : [TVariables]
): UseQueryResult<ExecutionResult<TResult>> {
  return useQuery([(document.definitions[0] as any).name.value, variables], () =>
    customFetcher('https://graphql.org/graphql/', document, variables)
  )
}

Then write type-safe code like the following:

Application Code
import { graphql } from './generated/gql.js'
import { useGraphQL } from './use-graphql.js'

const allFilmsWithVariablesQueryDocument = graphql(/* GraphQL */ `
  query allFilmsWithVariablesQuery($first: Int!) {
    allFilms(first: $first) {
      edges {
        node {
          title
        }
      }
    }
  }
`)

function App() {
  // `data` is properly typed, inferred from `allFilmsWithVariablesQueryDocument` type
  const { data } = useGraphQL(
    allFilmsWithVariablesQueryDocument,
    // variables are also properly type-checked.
    { first: 10 }
  )

  // ... further component code
}


Appendix II: Compatibility

GraphQL Code Generator client preset (@graphql-codegen/client-preset) is compatible with the following GraphQL clients and frameworks:

  • React

    • @apollo/client (since 3.2.0, not when using React Components (<Query>))
    • @urql/core (since 1.15.0)
    • @urql/preact (since 1.4.0)
    • urql (since 1.11.0)
    • graphql-request (since 5.0.0)
    • react-query (with graphql-request@5.x)
    • swr (with graphql-request@5.x)

  • Vue

    • @vue/apollo-composable (since 4.0.0-alpha.13)
    • villus (since 1.0.0-beta.8)
    • @urql/vue (since 1.11.0)

If your stack is not listed above, please refer to other guides (Angular, Svelte) or to our plugins directory.
