Moving from Registry Access Tokens to Access Tokens

On March 12, 2025, we introduced new Access Tokens managed at the Organization level as a replacement for the Registry Access Tokens created at the Target level.

This guide will help you migrate existing registry access tokens to access tokens.

If you are experiencing any difficulties or questions please do not hesitate to reach out to us. We are happy to help you along your journey.

Key Differences

Registry access tokens were exclusively bound to a single Target. All actions performed with them using the CLI (e.g., publishing a subgraph or checking a schema) were automatically executed on the target they were created within.

The new organization-level access tokens do not have such an association but can be restricted to specific resources (project, target, app deployment, or service) upon creation.

Because of that, the new access tokens require passing a reference to the target when performing actions using the CLI or reporting usage data.

Creating New Access Tokens

Please follow our documentation for creating new access tokens.

When creating the access token, select the permissions for the actions you want to perform with this access token. For example, if you want to publish a schema, select the Publish schema/service/subgraph permission. permission. Instead, if you only want to check a schema, select the Create schema check permission. The same applies for all other CLI actions.

💡

Tip: Follow the principle of least privilege by only selecting the scopes necessary for the token’s purpose.

Within the Resources step, select the project and target in which you want to allow this action. A new feature here is that you can now restrict an access token to publishing a service with a specific name.

After you tested and replaced the old registry access token with the new access token, delete the old registry access token.

Further Reading:

Access Token Documentation

Performing Actions with the CLI

New access tokens require passing a reference to the target. When performing an action with the CLI, you now need to pass a --target parameter, indicating on which target an action should be performed

Please at upgrade to at least CLI version 0.49.0.

Note: The new access tokens always start with the hvo1/ prefix.

Publish Schema


  hive schema:publish \
-    --registry.accessToken "...TRUNCATED..." \
+    --registry.accessToken "hvo1/...TRUNCATED..." \
+    --target "the-guild/graphql-hive/development" \
    --service users \
    users-subgraph.graphql

For the --target option, you can provide the slug as displayed on the Hive Console dashboard.

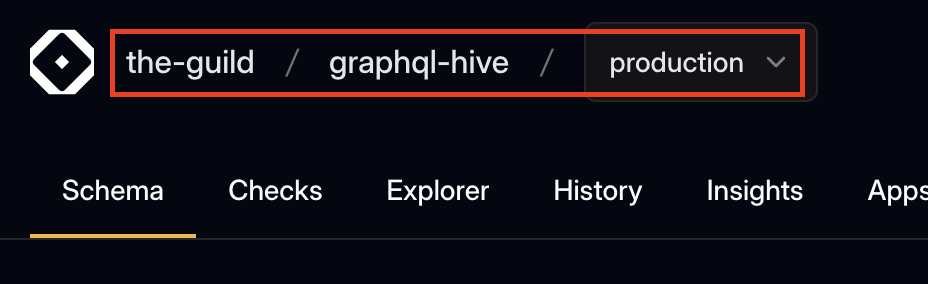

Retrieve the target slug from the Hive Console dashboard navigation. E.g. the-guild/graphql-hive/production.

Alternatively, you can also provide the UUID of the target (e.g. a0f4c605-6541-4350-8cfe-b31f21a4bf80). The UUID is more resilient to organization/project/target slug adjustments. You can find it within the target settings or by hovering over the target slug within the Hive dashboard.

If the provided access token has insufficient permissions on the provided target, an error message will be printed when executing the command.

Further Reading:

CLI Reference

Usage Data Reporting

Whether you are using Hive Gateway, Apollo Router, the Hive SDK (for Yoga or Apollo Server), or have your own custom logic for sending usage data, small adjustments need to be made as you must include the target to which the usage data is sent.

Ensure that the access token created for usage reporting contains the Report usage data permission.

Retrieve the target slug from the Hive Console dashboard navigation, e.g., the-guild/graphql-hive/production.

Alternatively, you can also provide the UUID of the target (e.g., a0f4c605-6541-4350-8cfe-b31f21a4bf80). The UUID is more resilient to organization/project/target slug adjustments. You can find it within the target settings or by hovering over the target slug within the Hive dashboard.

Hive Gateway

Please upgrade Hive Gateway to at least version hive-gateway@1.10.4.

Replace the usage of the --hive-registry-token config flag with the --hive-usage-target and --hive-usage-access-token flags.


  hive-gateway supergraph \
    "<hive_cdn_endpoint>" \
    --hive-cdn-key "<hive_cdn_access_key>" \
-    --hive-registry-token "<hive_registry_token>"
+    --hive-usage-target "my-org/my-project/my-target" \
+    --hive-usage-access-token "hvo1/...TRUNCATED..."

Further Reading:

Hive SDKs

Providing the target for the usage reporting configuration is mandatory for the new access tokens.

Upgrade @graphql-hive/yoga@0.41.0 to at least version 0.41.0.


import { useHive } from '@graphql-hive/yoga'

const hivePlugin = useHive({
  enabled: true,
  token: 'hvo1/...TRUNCATED...',
  usage: {
    target: 'my-org/my-project/my-target'
  }
})

Further Reading:

Upgrade @graphql-hive/apollo to at least version 0.38.0.


import { useHive } from '@graphql-hive/apollo'

const hivePlugin = useHive({
  enabled: true,
  token: 'hvo1/...TRUNCATED...',
  usage: {
    target: 'my-org/my-project/my-target'
  }
})

Further Reading:

Upgrade @graphql-hive/envelop to at least version 0.35.0.


import { useHive } from '@graphql-hive/envelop'

const hivePlugin = useHive({
  enabled: true,
  token: 'hvo1/...TRUNCATED...',
  usage: {
    target: 'my-org/my-project/my-target'
  }
})

Further Reading:

Upgrade @graphql-hive/core to at least version 0.10.0.


import { createHive } from '@graphql-hive/core'

const hive = createHive({
  enabled: true,
  token: 'hvo1/...TRUNCATED...',
  usage: {
    target: 'my-org/my-project/my-target'
  }
})

Further Reading:

Hive Client Reference

Apollo Router

Upgrade your docker image to at least router2.0.0-plugin2.1.0 or update the plugin to hive-apollo-router-plugin@2.1.0 if you are compling the router from source.

Adjust your router.yml file accordingly.


# ... other apollo-router configuration
plugins:
  hive.usage:
    enabled: true
    registry_token: 'hvo1/...TRUNCATED...'
    target: 'my-org/my-project/my-target'

Altenatively, the target can also be specified via the HIVE_TARGET_ID environment variable.

Further Reading:

Apollo Router Documentation

Custom HTTP Implementation

The HTTP endpoint for the usage reporting changed for the new access tokens


- https://app.graphql-hive.com/usage
+ https://app.graphql-hive.com/usage/<ORGANIZATION>/<PROJECT>/<TARGET>

Retrieve the target slug from the Hive Console dashboard navigation, e.g., the-guild/graphql-hive/production.

Using this slug the endpoint would be https://app.graphql-hive.com/usage/the-guild/graphql-hive/production.

Alternatively, you can also use the target’s UUID instead of the slug.


- https://app.graphql-hive.com/usage
+ https://app.graphql-hive.com/usage/<TARGET_UUID>

The /usage/<ORGANIZATION>/<PROJECT>/<TARGET> and /usage/<TARGET_UUID> endpoints only support the X-Usage-API-Version: 2 specification.

Further Reading:

Hive Usage Reporting Endpoint Specification
